Pigment Yellow 12
Heubach
Permanent Yellow DHG N22
Stock : 0 kg
Lead : 21 days
Price
Request a quote
Authorized Distributor
B R Enterprises
Applications:
SPECIFICATION:
Tinctorial strength and gloss Extremely low conductivity Excellent color strength High gloss Low strike-through Outstanding rheological properties for mill base technology

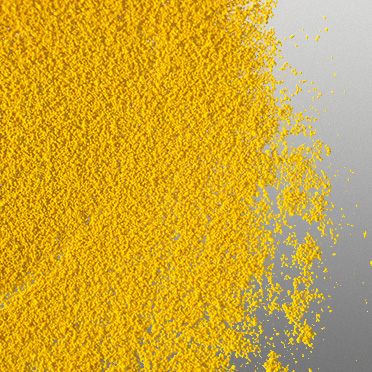

Permanent Yellow DHG N22 is a green shade diarylide yellow pigment. It is a special type for publication gravure ink manufacturing. It exhibits excellent color strength, high gloss, low strike-through and outstanding rheological properties for mill base technology.
Benefits
Product Data
Physical Data
Fastness Data
Applications
Recommended for
Paste inks
Liquid inks
■ highly recommended ● recommended ○ limited suitability – not tested
INFORMATION:
| C. I. Name | Pigment Yellow 12 |
|---|
TECHNICAL DATA:
PASTE INKS
| Coldset | – |
|---|---|
| Heatset | – |
| Sheetfed | – |
| Metal deco | – |
| Silkscreen | – |
| UV curing (Offset) | – |
LIQUID INKS
| Polyamide | – |
|---|---|
| NC acetate | – |
| NC alcohol | – |
| Waterbased | – |
| Polyvinyl butyral | – |
| UV curring (Flexo) | – |
| Decorative laminates | – |
| Pub gravure, Toluene | ■ |
FASTNESS DATA
| – | |
| DOP | – |
| MEK | – |
| Acid | – 5 |
| Soap | – 4-5 |
| Alkali | – 4-5 |
| Butter | – |
| Ethanol | – |
| Toluene | – |
| Paraffine | – |
| Test Medium | Change of the print Print / draw-down |
| White spirit | – |
| Ethyl acetate | – |
| Silver laquer | |
| Sterilization | Steam phase |
| Heat stability | -°C |
| Light fastness | 3 10.0% |
| Solvent mixture | – |
PHYSICAL DATA
| Density | 1.20 [g/cm³] |
|---|---|
| pH-value | – |
| Viscosity | – [Pa·s] |
| Oil absorption | 26 [ml/100g] |
| Specific surface | – [m²/g] |
| Fineness of grind | – [µm] |
| Average particle size | – [nm] |
