Pigment Yellow 13
Heubach

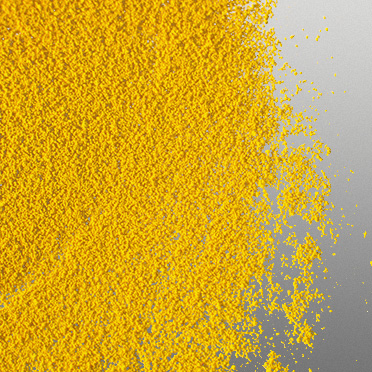

Permanent Yellow GR
Stock : 0 kg
Lead : 21 days
Price
Request a quote
Authorized Distributor
B R Enterprises
Applications:
SPECIFICATION:
Tinctorial strength and gloss High colour strength
Permanent Yellow GR is a very opaque diarylide yellow pigment. It meets the requirements for the European Scale for Process printing. Recommended for paste inks as well as for solvent- and water based packaging gravure and flexographic printing inks. Suitable for metal decorating inks when stoving temperature does not exceed 200°C.
Benefits
Product Data
Physical Data
Fastness Data
Applications
Recommended for
Paste inks
Liquid inks
■ highly recommended ● recommended ○ limited suitability – not tested
INFORMATION:
| C. I. Name | Pigment Yellow 13 |
|---|
TECHNICAL DATA:
PASTE INKS
| Coldset | ● |
|---|---|
| Heatset | ● |
| Sheetfed | ■ |
| Metal deco | ○ |
| Silkscreen | – |
| UV curing (Offset) | ■ |
LIQUID INKS
| Polyamide | – |
|---|---|
| NC acetate | ● |
| NC alcohol | ● |
| Waterbased | ■ |
| Polyvinyl butyral | ● |
| UV curring (Flexo) | ■ |
| Decorative laminates | – |
| Pub gravure, Toluene | – |
FASTNESS DATA
| 5 | |
| DOP | – 4-5 |
| MEK | 5 |
| Acid | 5 |
| Soap | 5 |
| Alkali | 5 |
| Butter | – 5 |
| Ethanol | 5 |
| Toluene | 5 |
| Paraffine | – 5 |
| Test Medium | Change of the print Print / draw-down |
| White spirit | 5 |
| Ethyl acetate | 5 |
| Silver laquer | |
| Sterilization | Steam phase |
| Heat stability | 180°C |
| Light fastness | 4 10.0% |
| Solvent mixture | 5 |
PHYSICAL DATA
| Density | 1.36 [g/cm³] |
|---|---|
| pH-value | – |
| Viscosity | – [Pa·s] |
| Oil absorption | 85 [ml/100g] |
| Specific surface | 47 [m²/g] |
| Fineness of grind | – [µm] |
| Average particle size | 75 [nm] |
