Pigment Yellow 174
One Sudarshan: Legacy Heubach
Permanent Yellow GRY E82
Stock : 0 kg
Lead : 21 days
Price
Request a quote
Authorized Distributor
B R Enterprises
SPECIFICATION:
high tinctorial strength, gloss and transparency unmatched flow properties compliant to common food contact regulations

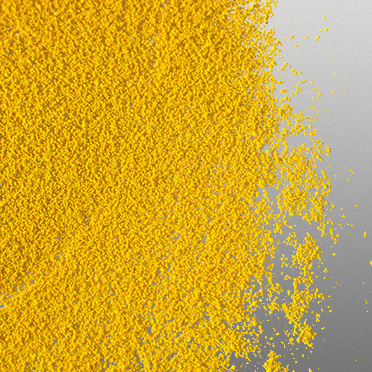

Permanent Yellow GRY-E82 is a highly transparent, greenish diarylide yellow pigment for offset printing inks and fulfills the requirements for 4-color-process-printing according to ISO 2846-1.Inks based on Permanent Yellow GRY-E82 show excellent coloristic properties as well as good setting and unmatched flow properties. Permanent Yellow GRY-E82 is compliant to AP89/I, Swiss Ordinance and REACH regulations. Recommended for heatset and sheetfed offset inks, in both commercial and food packaging applications.
Benefits
Product Data
Physical Data
Fastness Data
Recommended for
Paste inks
Liquid inks
■ highly recommended ● recommended ○ limited suitability – not tested
INFORMATION:
| C. I. Name | Pigment Yellow 174 |
|---|
TECHNICAL DATA:
PASTE INKS
| Coldset | ○ |
|---|---|
| Heatset | ■ |
| Sheetfed | ■ |
| Metal deco | ○ |
| Silkscreen | ○ |
| UV curing (Offset) | ○ |
LIQUID INKS
| Polyamide | – |
|---|---|
| NC acetate | – |
| NC alcohol | – |
| Waterbased | – |
| Polyvinyl butyral | – |
| UV curring (Flexo) | – |
| Decorative laminates | – |
| Pub gravure, Toluene | – |
FASTNESS DATA
| – | |
| DOP | 5 |
| MEK | 4 |
| Acid | 5 |
| Soap | 5 |
| Alkali | 5 |
| Butter | 5 |
| Ethanol | 5 |
| Toluene | 3-4 |
| Paraffine | 5 |
| Test Medium | Print / draw-down |
| White spirit | 5 |
| Ethyl acetate | 5 |
| Silver laquer | |
| Sterilization | Steam phase |
| Heat stability | 200°C |
| Light fastness | 4-5 10.0% |
| Solvent mixture | 5 |
PHYSICAL DATA
| Density | 1,25 [g/cm³] |
|---|---|
| pH-value | – |
| Viscosity | – [Pa·s] |
| Oil absorption | [ml/100g] |
| Specific surface | – [m²/g] |
| Fineness of grind | – [µm] |
| Average particle size | 38 [nm] |
